LW-R3000

RIDE-ON ROAD MARKING MACHINE

High productivity. Consistent precision. Built for real-world performance.
Marking Width

50 / 100 / 150 / 300 mm

Max. Output

5.5 km / h

Paint Tank

300 L

Glass Beads Tank

200 L

Drive Mode

Hydraulic

Engine Power

37 kW

Weight

3,500 kg

Dimension (L × W × H)

5,200 × 2,150 × 2,150 mm

REQUEST TECHNICAL RECOMMENDATION →

TECHNICAL SPECIFICATIONS

Marking Width
50 / 100 / 150 / 300 mm
Max. Output
5.5 km / h
Paint Tank Capacity
300 L
Glass Beads Tank Capacity
200 L
Drive Mode
Hydraulic Drive
Engine
Diesel, 4-Cylinder, Turbocharged
Engine Power
37 kW / 2,400 rpm
Spray System
Airless (Piston Pump)
Max. Pressure
22 MPa
Control System
PLC Control with Touch Display
Weight
3,500 kg
Dimensions (L × W × H)
5,200 × 2,150 × 2,150 mm

APPLICATION SCENARIOS

VIEW ALL →

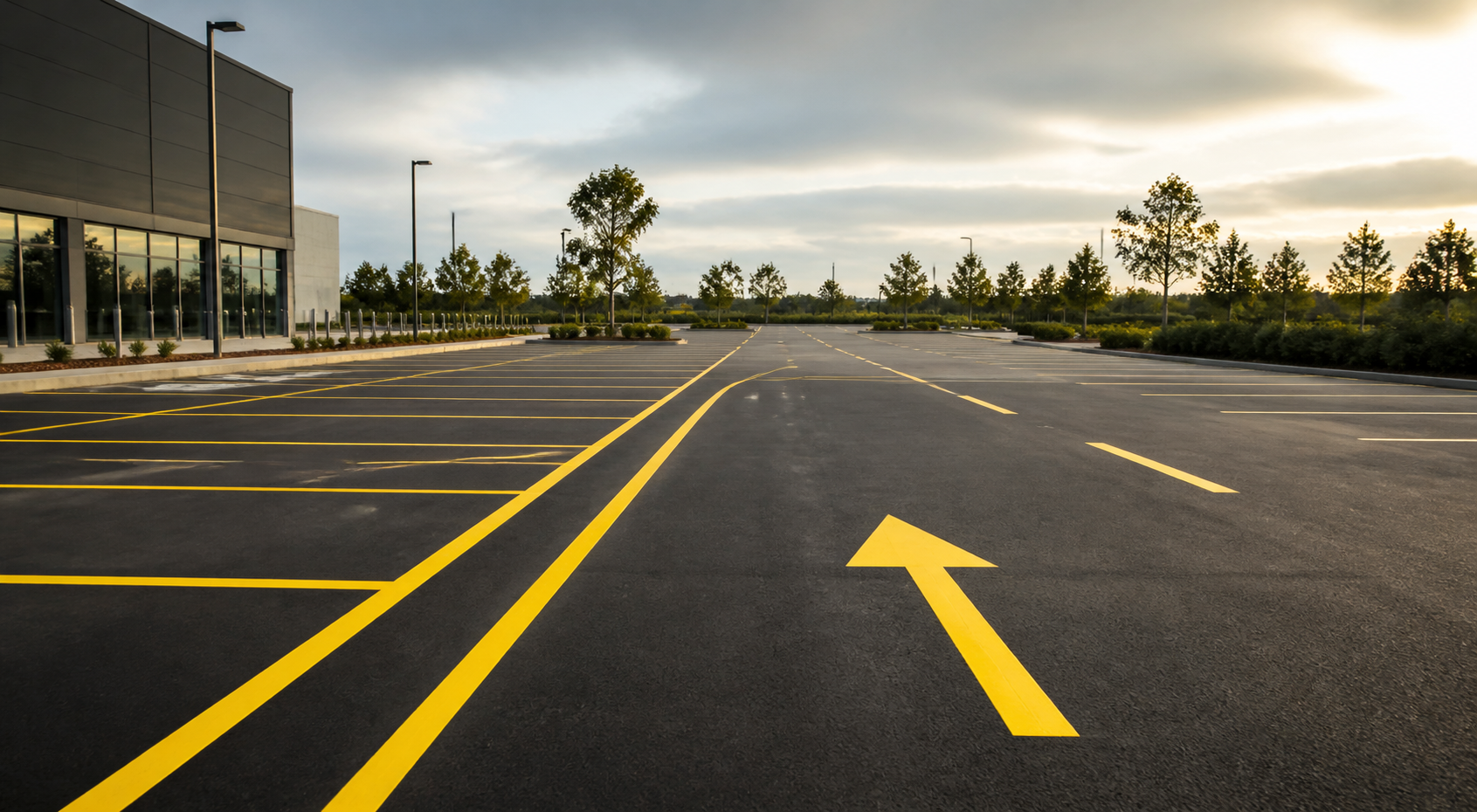

Road marking application parking

Urban Roads

High visibility lines for city streets

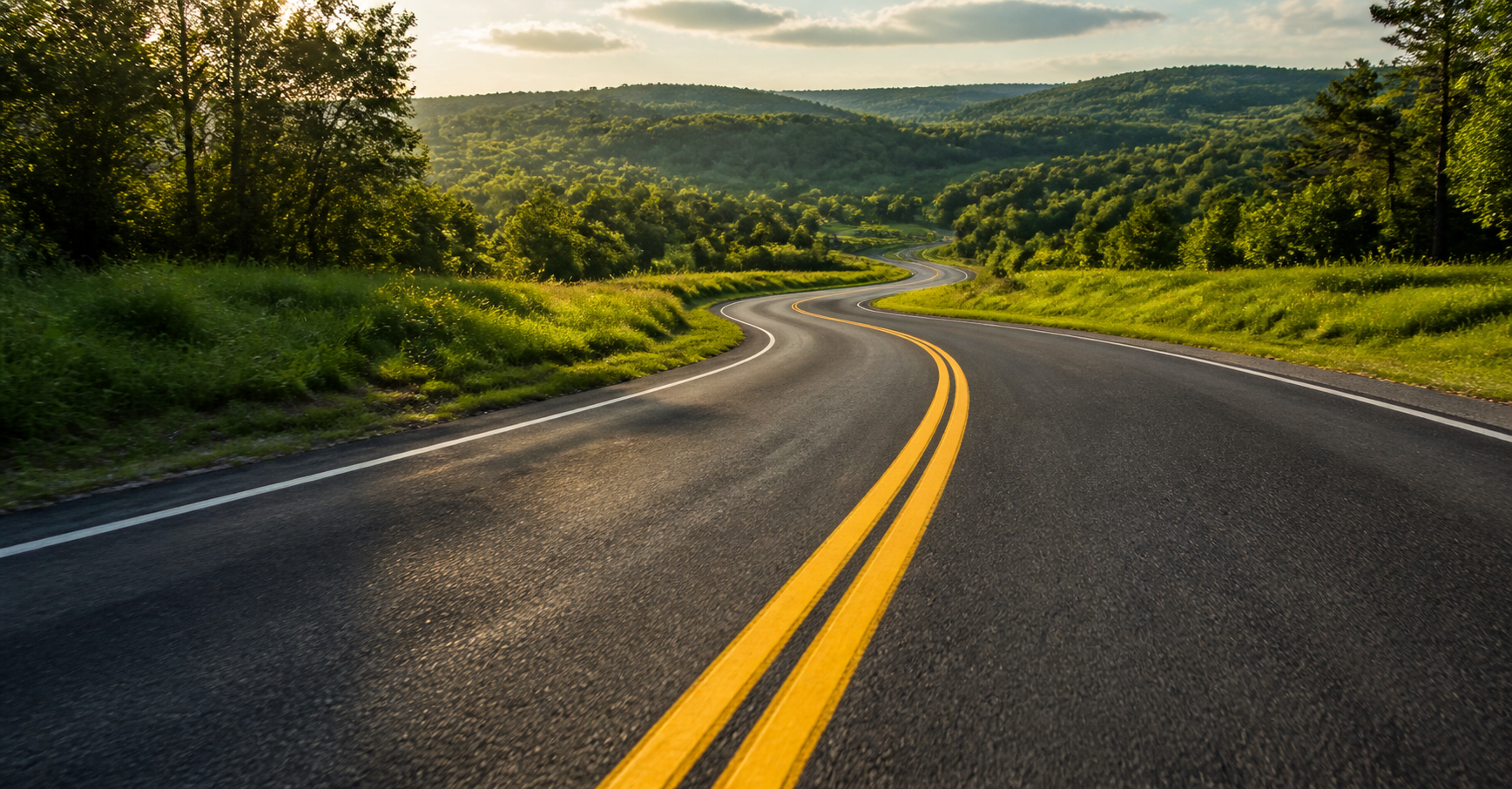

Road marking application highway

Highways

Long-distance lane marking

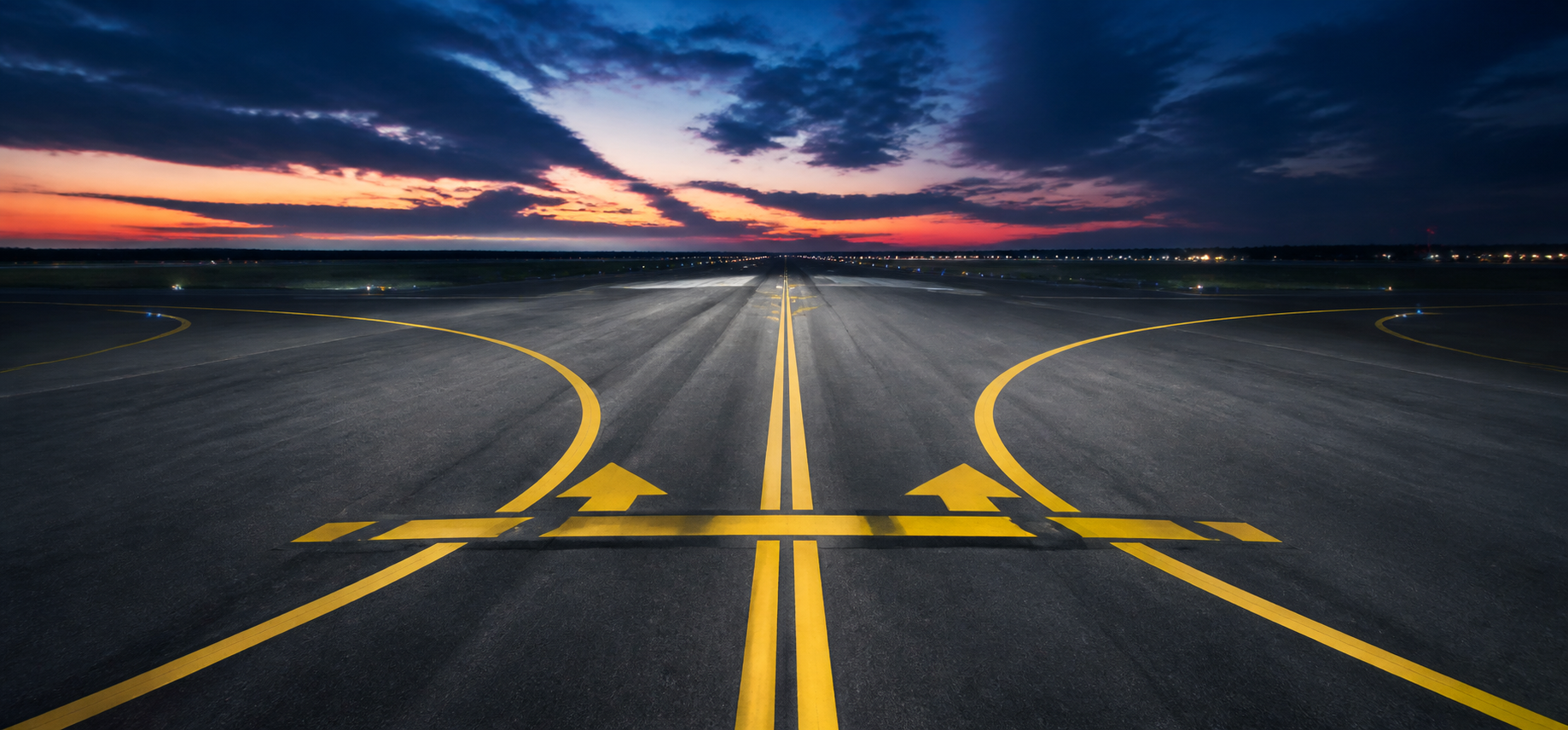

Road marking application airport

Airports

Runways and taxiway marking

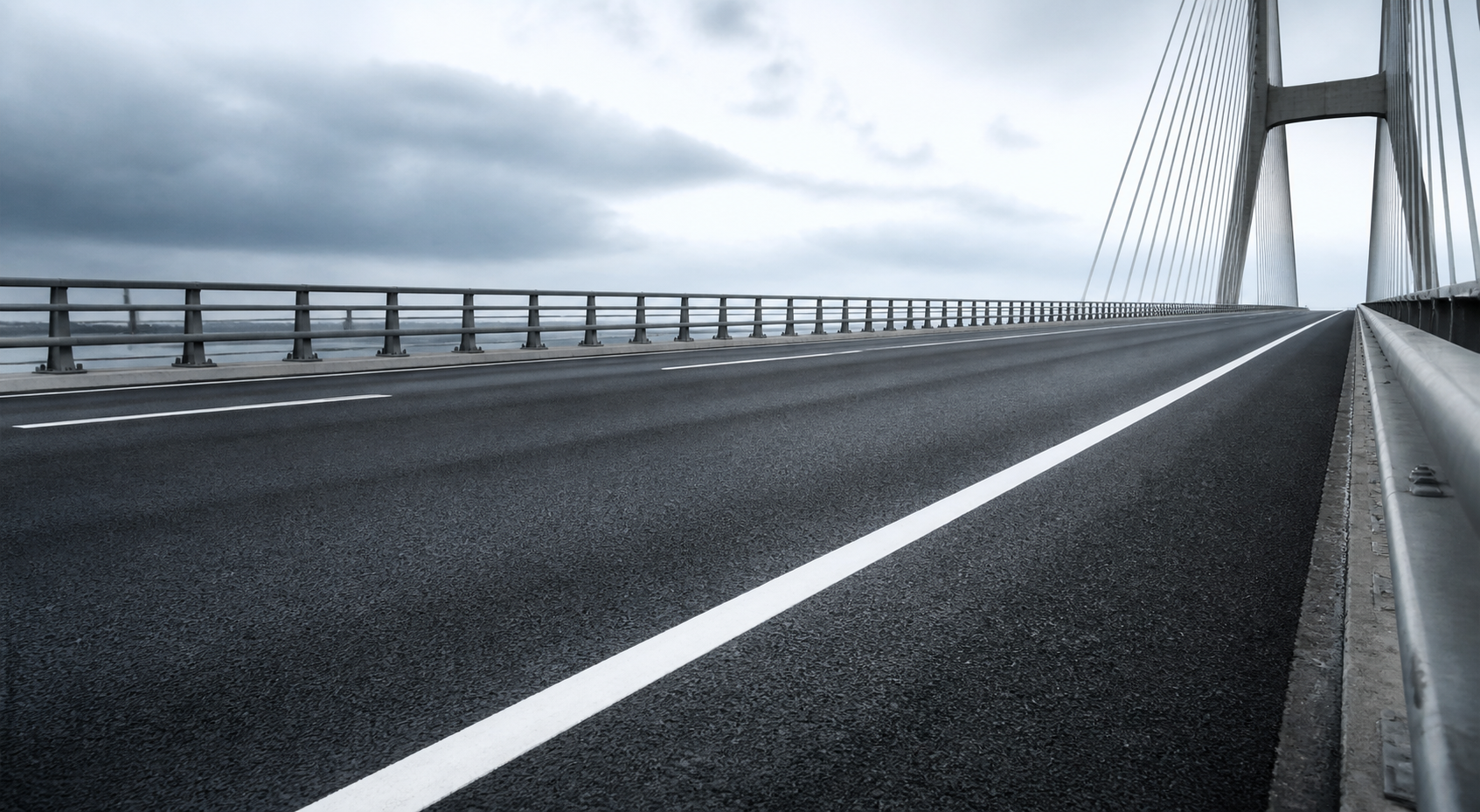

Road marking application bridge

Bridges

Edge and lane marking

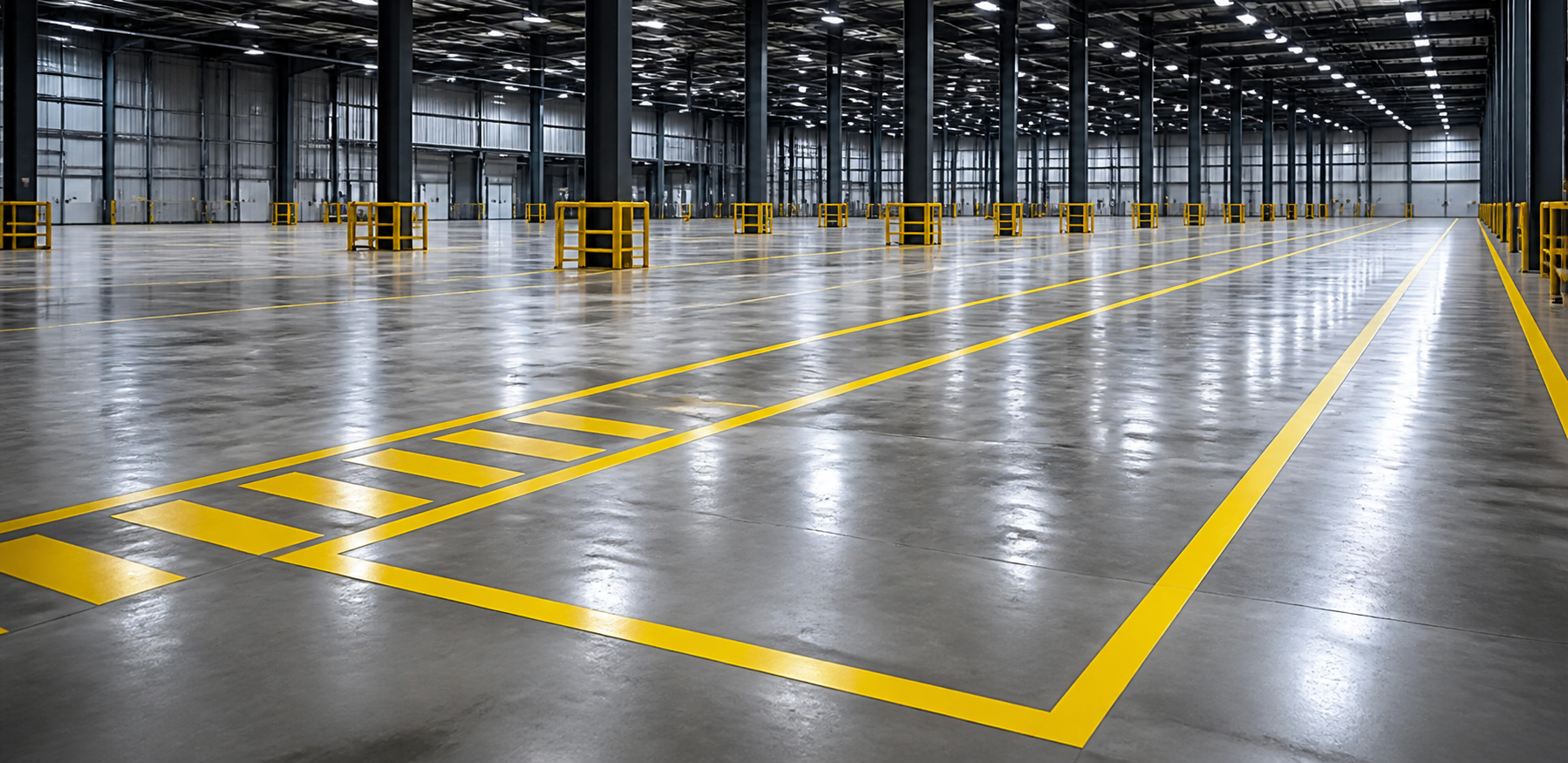

Road marking application industrial

Industrial Zones

Warehouses and factory roads

DETAILS & FEATURES

SMART CONTROL SYSTEM

Intuitive operation with real-time monitoring.

PRECISION SPRAY GUN

Stable line quality with adjustable width.

HEAVY-DUTY CHASSIS

Built for stability and long service life.

POWERFUL DIESEL ENGINE

High efficiency with low fuel consumption.

OPERATING WORKFLOW

01 Site Assessment

Evaluate road and marking requirements.

02 Machine Setup

Configure flow, paint and beads.

03 Marking Operation

Consistent spraying and bead drop.

04 Inspection

Check line quality and reflectivity.

RECOMMENDED COATING TYPES

Solvent-Based Paint

Durable and fast drying

Waterborne Paint

Low VOC, eco-friendly

Thermoplastic

High durability, long life

Cold Plastic

Durable cost-effective solution

OPTIONAL CONFIGURATIONS

Auto Preheater

Improves coating flow and adhesion.

Dual Color System

For multi-line and color marking.

Auto Bead Dispenser

Precise bead flow control.

Rear View Camera

Enhanced rear visibility.

GPS Speed Sensor

Accurate speed monitoring.

LED Work Lights

Night operation ready.

PACKAGING & DELIVERY

Packaging

Standard export packaging.

Loading

Secure loading and fixing.

Transport

Safe freight and transport.

Delivery Time

20–30 days (example).

INQUIRE ABOUT LW-R3000

Our experts will provide the right recommendation for your project.
LW-R3000 Inquiry Form
